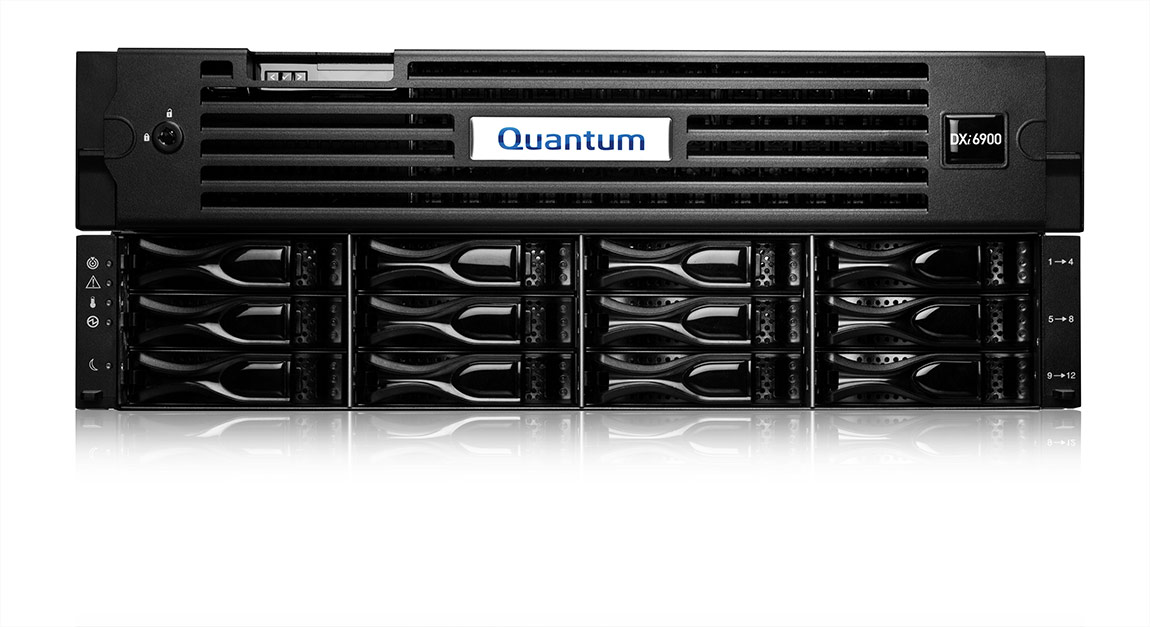

Quantum DXI6900

 INTERFACES

NAS Backup Target Presentations: CIFS and/or NFS

Shares: 128 max

Open Storage(OST) API Presentations: Symantec Storage Servers and Logical Storage Units

 VTL Fibre Channel Partitions (max): 64

Drives (max): 512

Cartridges per Partition (max): 40000

Emulations (libraries): Scalar® 24, Scalar i40/i80, Scalar 100, Scalar i500, Scalar i2000, Scalar i6000

Emulations (drives): DLT7000, SDLT 320, SDLT 600, DLT-S4, LTO-1, LTO-2, LTO-3, LTO-4, LTO-5

 INLINE PERFORMANCE NAS

 Interface: 13.5TB/hour

OST Interface: 16.3TB/hour*

VTL Interface: 15.0TB/hour

DXi Accent: 15.1TB/hour** * Performance in target mode - does not require use of DXi Accent software
** DXi Accent improves throughput in bandwidth-constrained environments

SYSTEM REDUNDANCY

Enhanced RAID, redundant power, redundant cooling, hot spare drive capacity, hot-swap drives, power supplies and fans.

HOST TO APPLIANCE H/W INTERFACE Six 8Gbps FC, up to four 10GbE Optical (SFP+) or Copper, and up to seven 1GbE ports

SOFTWARE LICENSES INCLUDED The base price of the DXi6900 includes licenses for NAS, VTL, OST, deduplication, replication, path-to-tape(PTT) and DXi Accent™ software for hybrid deduplication.

CAPACITY AND SCALABILITY

Usable capacity: 17TB to 510TB

Scaling increment: 17TB

Logical Capacity: 10200

Hard Disk Drives: 4TB

PHYSICAL SPECIFICATIONS

Dimesions:

System Node: 2U, [17.5in (W) x 3.4in (H) x 29.7in (D)] - [44.5cm (W) x 8.6cm (H) x 75.4cm (D)]

Expansion Module: 2U, [17.8in (W) x 3.4in (H) x 21.8in (D)] - [45.2cm (W) x 8.6cm (H) x 55.4cm (D)]

Weight:

System Node: 64.9lbs (29.4kg)

Expansion Module: 59lbs (26.76kg)

Expansion: Up to 30 17TB expansion points within 15 physical expansion modules 2U each

POWER SPECIFICATIONS

Power Input: NEMA 5-15P to C13 power cord

Input Voltage: 100 to 240VAC, 50-60Hz

Rated Current:

System Node: 12A @ 100V, 6.5A @240V

Array Module: 7A @ 100V, 2.9A @240V

Expansion Module: 7A @ 100V, 2.9A @240V

Typical Power Consumption: System Node: 586W 5.9A@100V

Array Module: 334W 3.3A@100V

Expansion Module: 228W 2.3A@100V Inrush: 42A @100V – 510TB

BTUs: 13910 BTU @ 510TB

ENVIRONMENTAL SPECIFICATIONS TEMPERATURE

Operating: 50° to 86°F (10° to 30°C)

Shipping & Storage: -4° to 140°F (-20° to 60°C)

RELATIVE HUMIDITY

Operating: 20 to 80% non-condensing

Shipping & Storage: 5 to 95% non-condensing

ALTITUDE Operating: -50 to 10,000ft (-15.2 to 3,048m)

Shipping & Storage: -50 to 39,370ft (-15.2 to 12,000m)
